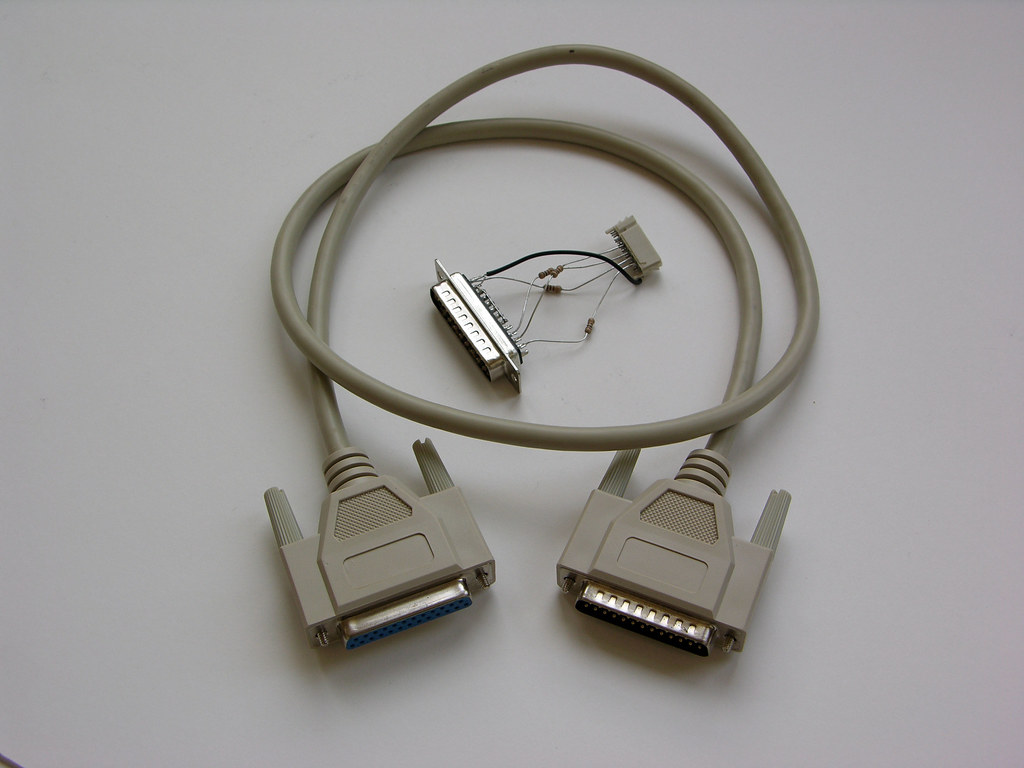

By popular demands I am publishing pictures of my JTAG, which I made to revive a wireless router some time ago. Just click on the picture below to see it in all ghetto-style glory with some explanations of my "design decisions".
You can see that it is very basic. It was made in ~3 minutes and costs ~$6 (the most expensive part was the cable — $3.99). It was assembled according to this diagram.
OpenWrt has officially terminated Sveasoft’s license citing blatant violation of the GPL. For more details go to OpenWrt’s forum: Unbelievable. It’s getting quite hilarious. For example you can “learn” that the GPL is derived directly from “the economic and political theories of Karl Marx”.
In general it is so sad to see such abuses. It is not hard to comply with the license. If you don’t like it, don’t use the GPL’d software in your product.
It looks like this is the last update before upcoming beta release. Besides some minor bug fixes, it sports improved firewall configuration widget:
Compact representation of port ranges. Example: tcp 9000-9100 ⇒ mycomp Port redirection. Example: tcp 8080 ⇒ mycomp:80 While the former improves on existing functionality, the latter implements totally new feature. It allows mapping external ports to different ports of internal computers.
It looks like nbd was able to find the problem, which plagued many people (including me) with QoS. You can find details in this thread on OpenWrt forum. Instructions on how to install QoS package can be found in this FAQ entry. Give it a whirl and don’t forget to thank Felix Fietkau (nbd).
QoS was the biggest feature on my "wanted" list. It means now I can produce an OpenWrt GUI (webui) module to deal with it.
I just released a refresher for OpenWrt WebUI alpha package. It fixes a bug, which was reported by several people.
Some users had problems with Net configurator applet, if wl0_country_code was unset in NVRAM. While it is extremely easy to set, I suggest reinstalling webui. Please read the original post on how to do it.
Thank you guys for your great feedback! Working together we will make webui even better.
Finally I released WebUI 0.1 (Homunculus) alpha — AJAX-based web interface for OpenWrt made with Dojo! Highlights of this release: 5 more applets including firewall configurator and more network settings. Now proceed to install the package and to read release notes.
The package is here: webui-0.1-alpha.ipk. You can install it using following command in OpenWrt shell:
ipkg install http://lazutkin.com/download/webui-0.1-alpha.ipk Release notes:
WebUI can be installed side-by side with webif (comes standard with OpenWrt White Russian RC4).
OpenWrt RC4 is out. Take it while it’s hot! It includes multiple stability updates and webif web-based user interface!
Update: OpenWrt GUI alpha is released and tested with RC4.

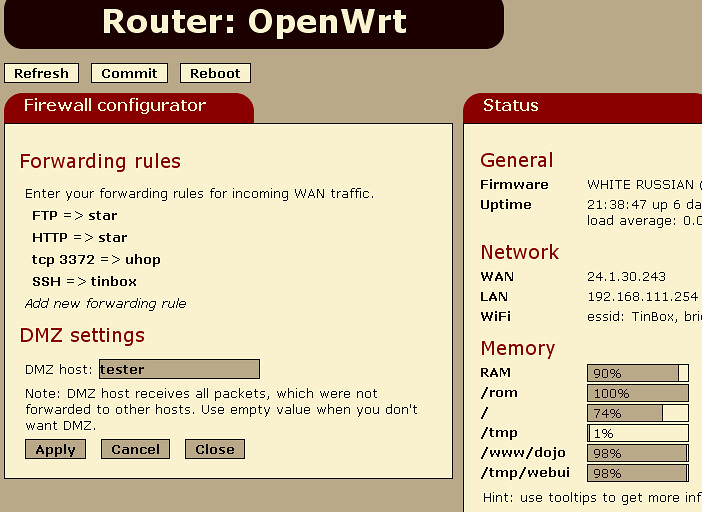

During final tests I found a nasty bug in "Firewall configurator" applet. I decided to postpone the release until I’ll be able fix it. You can see bastard’s picture on Flickr along with some description of it.
I was able to work more on OpenWrt GUI. Alpha release seems inevitable now. I’ll try to publish it during this weekend.

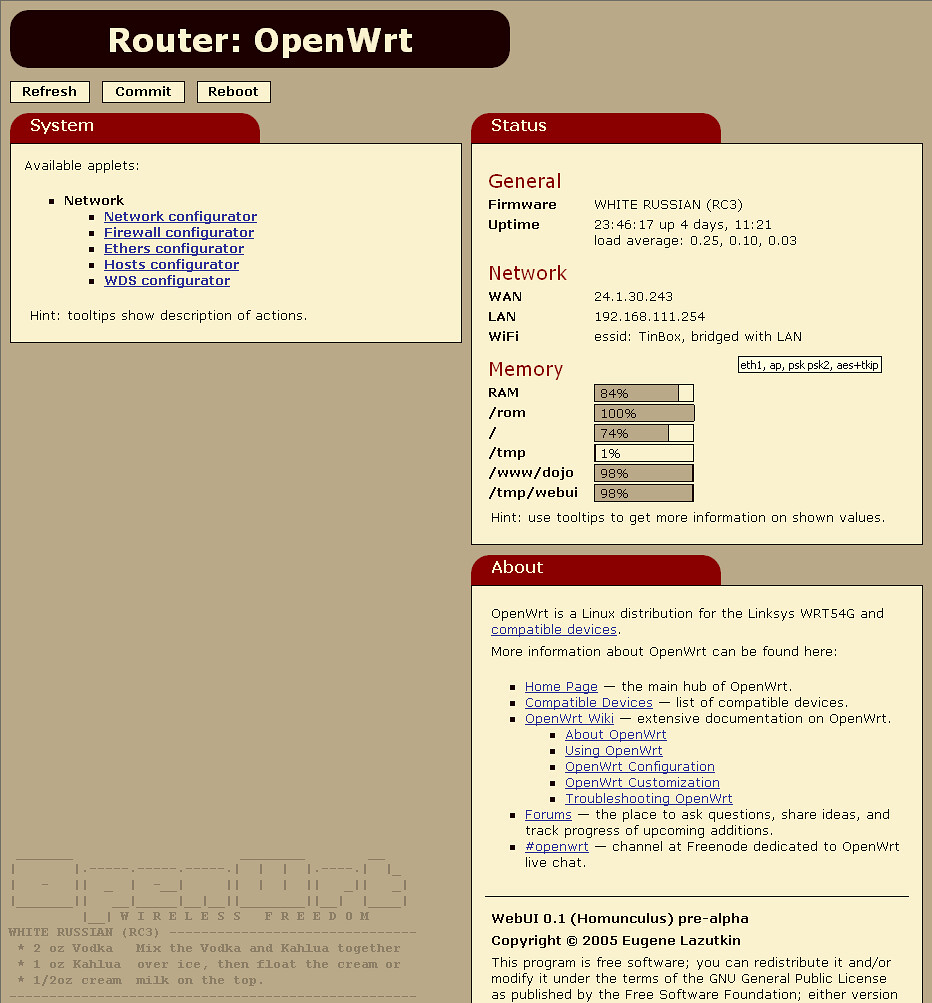

I added back the main applet, which serves as a menu for all other applets. More network configuration-related applets are added. Status applet is cleaned up considerably: all less important information was moved to tooltips. New screenshot is available for your viewing pleasure.
Stay tuned for upcoming alpha release!
I didn’t have a lot of time this weekend. So I decided to implement the simplest part of upcoming OpenWrt GUI (webui) — hosts editor. It is a perfect candidate to write something in 15 minutes or less — it has almost no "business" logic in it: read/edit/verify/write cycle. The hardest part was to learn how to upload dynamically generated files without writing them to disk first.
It turned out to be very simple.
Update: this document is officially obsolete — alpha is released!
Please download it again: /webui-0.1-pre-alpha.ipk— two debug files made their ways to the release messing things up. Now it is fixed and I hope it’ll work for you.
After some requests I’ve updated OpenWrt GUI screenshots.Additionally I’ve recorded a screencast using Wink. Enjoy!
Update: new OpenWrt GUI alpha is released!
Update: this document is officially obsolete — alpha is released!
Finally I released a preview: /webui-0.1-pre-alpha.ipk!
I included two information applets and a simple network configuration applet. I think it would be enough for a proof of concept. I borrowed heavily from nbd’s webif. So if it works for you, it is due to his OpenWrt expertise. If it doesn’t, it is my fault.
Both webif and webui can be installed side by side:
Finally I found time to finish it up. It is pre-alpha quality now, but shows the direction.
The only problem is a packaging. I didn’t mean OpenWrt’s IPKG. I am talking about creating a custom build of Dojo to reduce the foot print. Dojo has a special provision for that but so far I was not able to do it getting some strange errors. I hope I’ll get some help from developers.

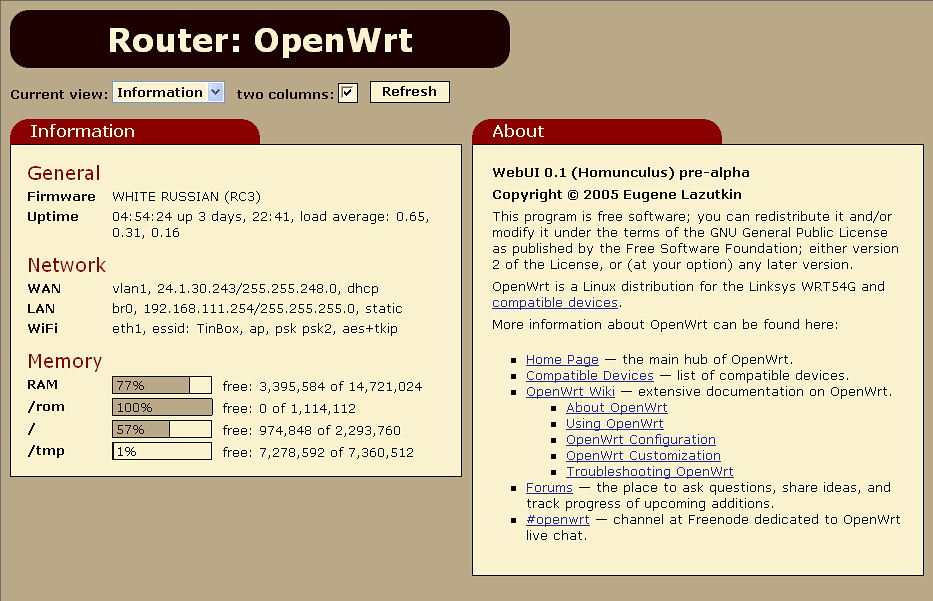

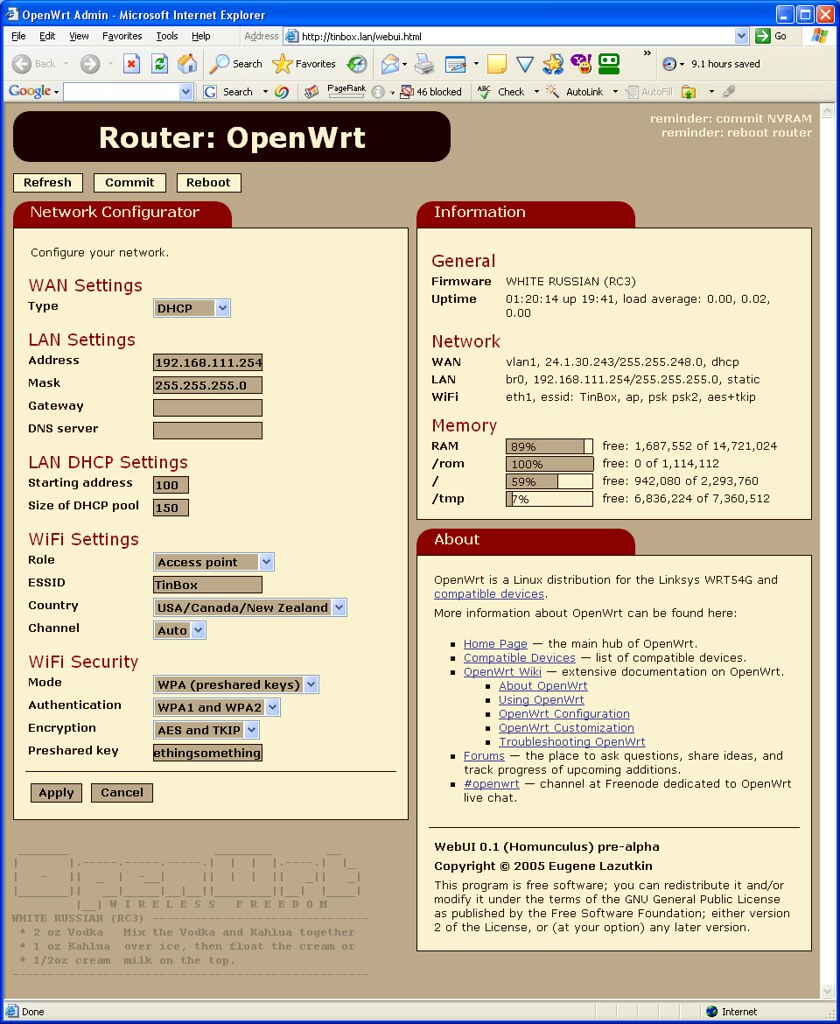

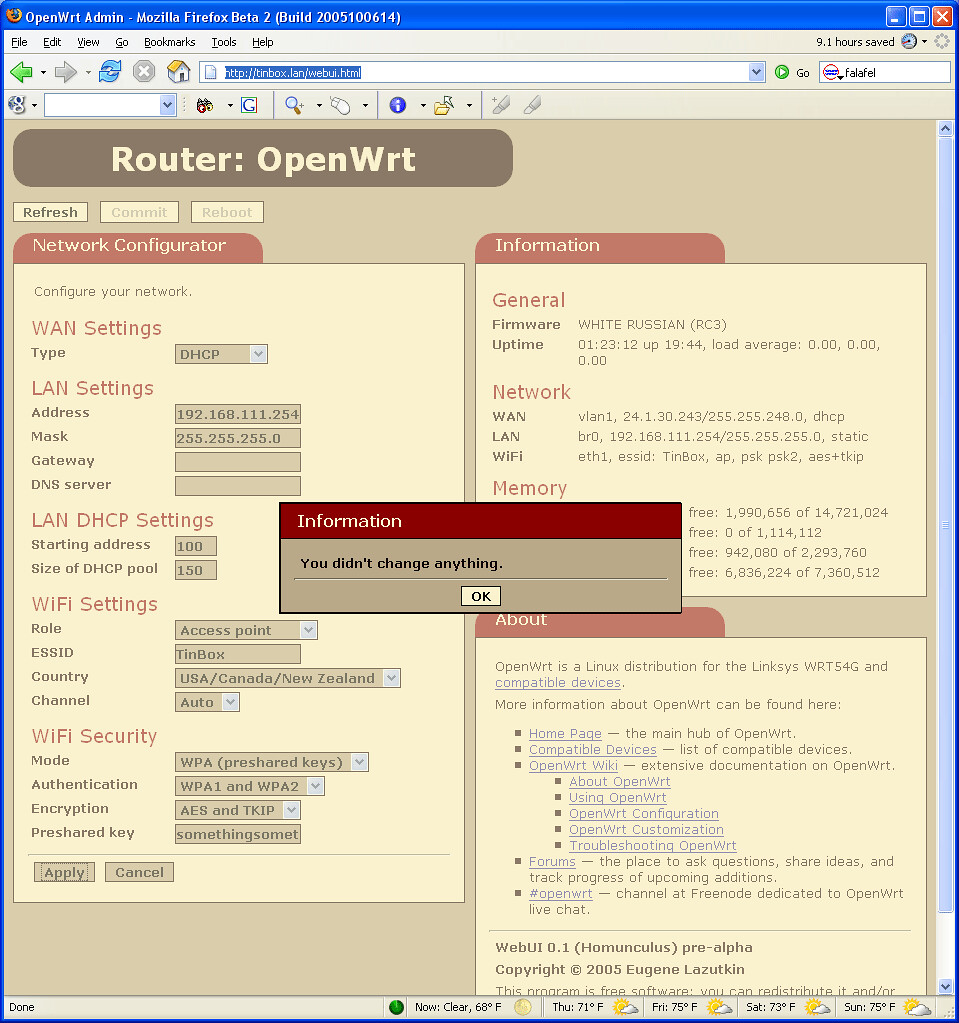

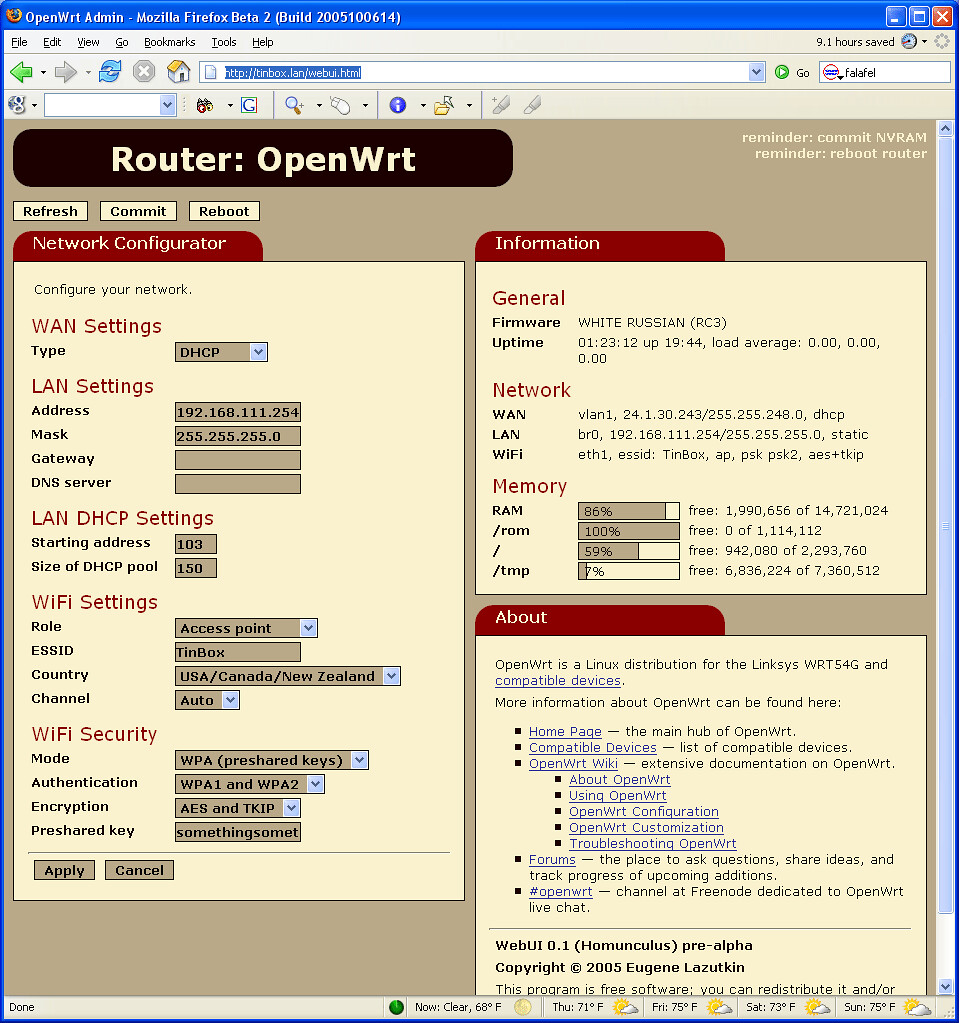

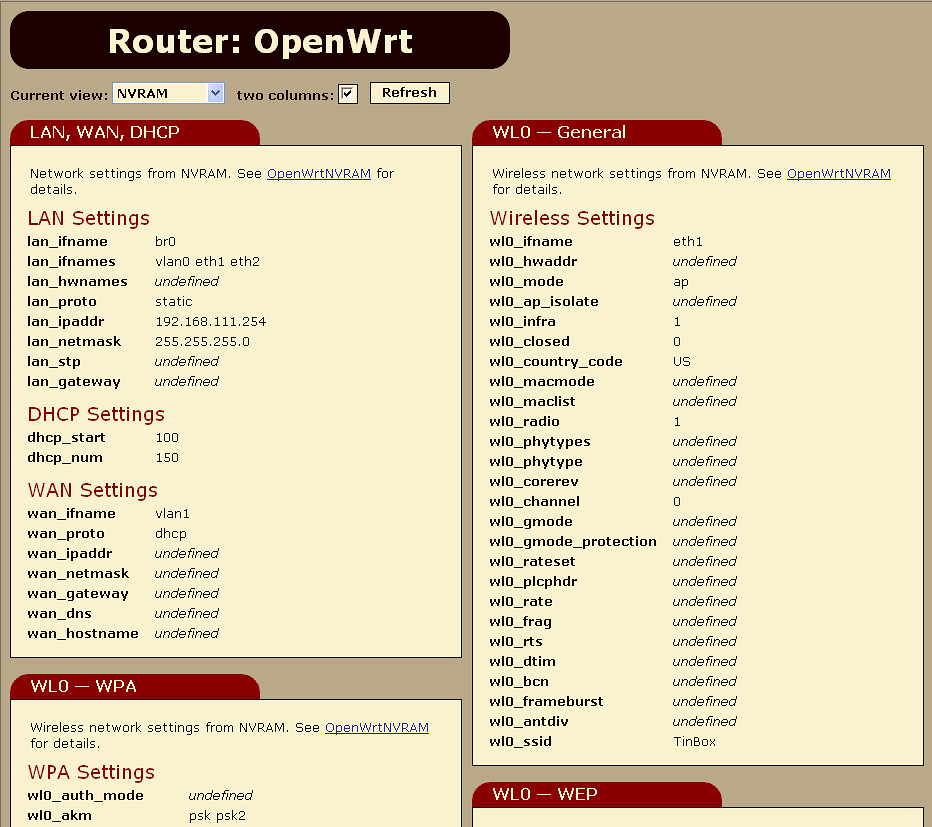

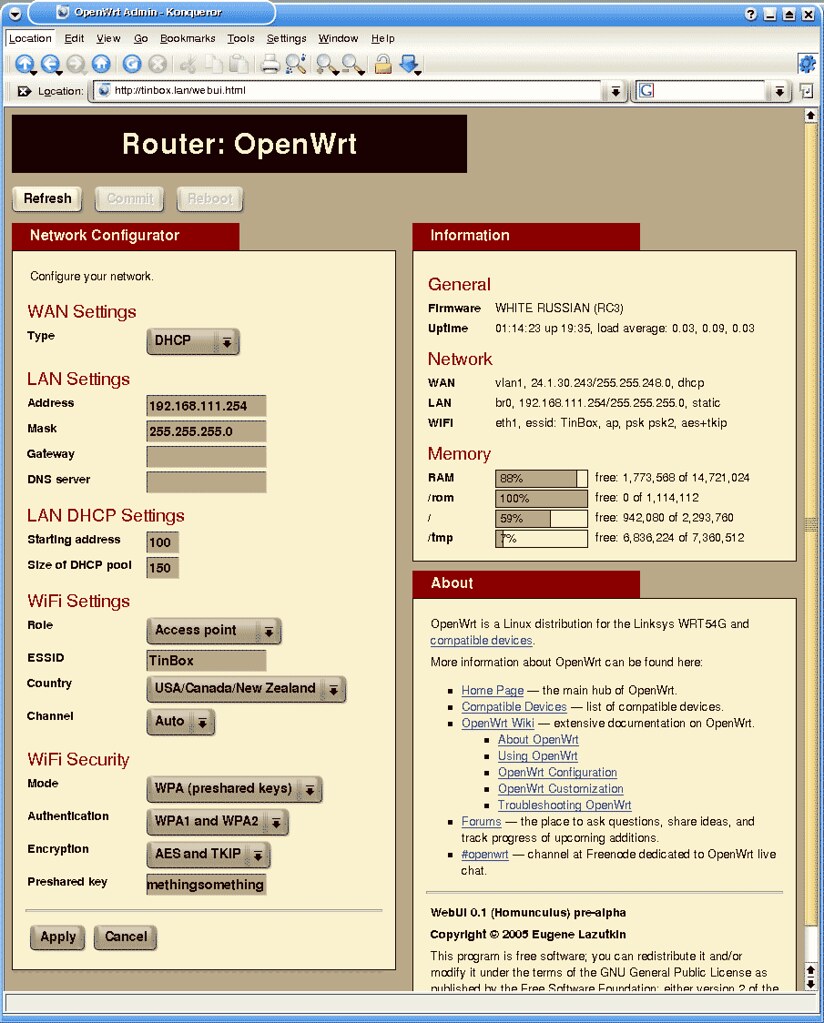

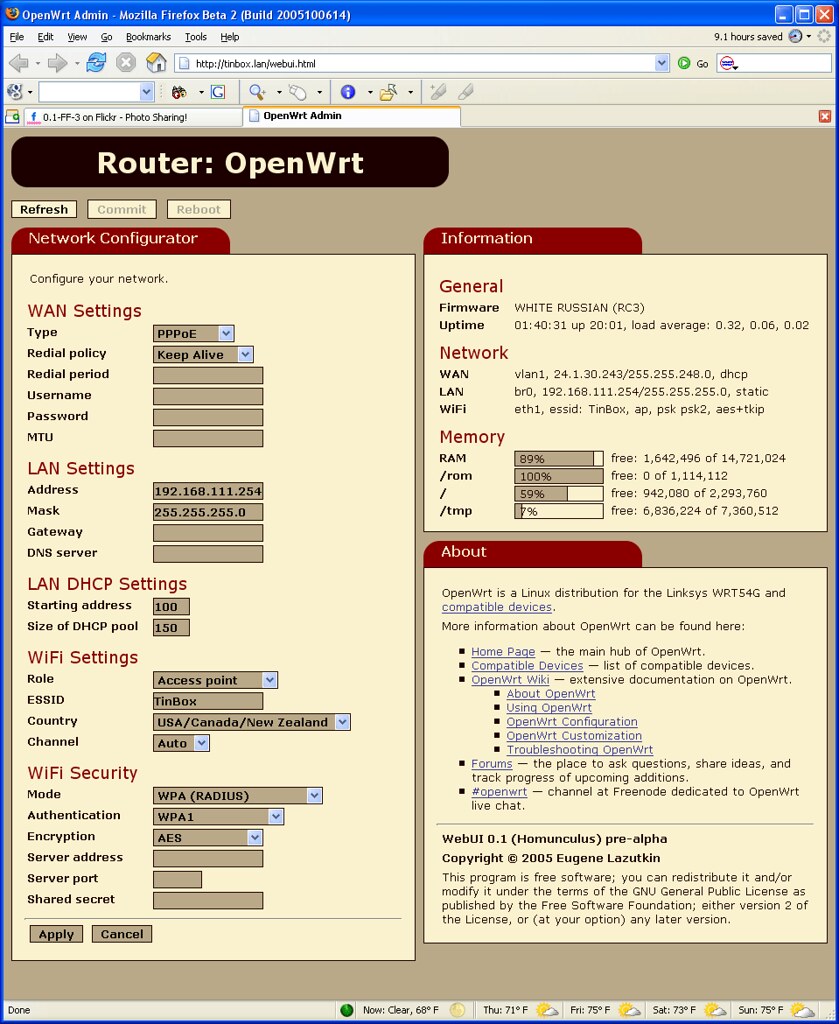

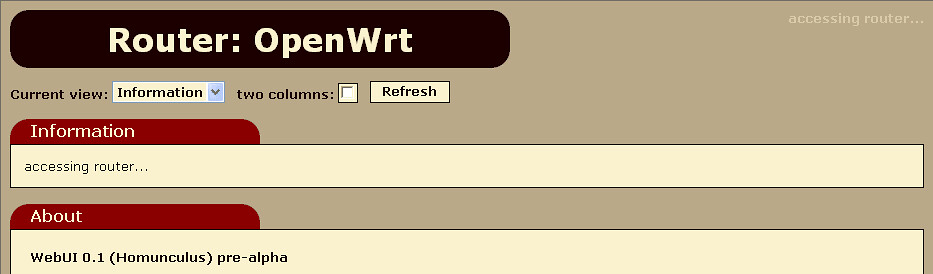

I decided to post some screenshots of OpenWrt GUI running on my browser. I didn’t package it as .ipk yet. Screenshots are hosted on Flickr. If you want to see full-size picture (== undistorted by scaling), go to "different sizes" (it is in "Additional information" on the right side), and select "Large". Please bear in mind that this is the first cut without any niceties. I’ll put some niceties in, but I want to have working functionality first.
As you know I bricked my wireless router. All simple things were tried without any positive effect. Kaloz (of OpenWrt fame) has advised me to try JTAG. It’s a very simple thing: you need a computer, a proper software, and JTAG cable, which can be self-made. Obviously the last part is the crucial one.
I made a trip to my friendly neighborhood Altex store and bought all necessary parts: 4 100 Ohm resistors, male & female 14 pin IDC connectors (they didn’t have 12 pin ones, which were modified later using cutters), 25 pin male SUB-D, and 3' 25 pin male to female cable — I figured I’ll make extremely short JTAG "cable" and attach it to short printer cable.
Today I have good news and bad news.
The good news is tonight I was able to work on AJAX OpenWrt GUI a little bit more. It is coming together. I coded my first applet. It shows current stats, nothing fancy.
The bad news is I bricked my router apparently by running nvram show repeatedly. I suspect that nvram is corrupted beyond salvation. I have to reset it somehow. I tried simple recipies listed in OpenWrt Wiki but no luck so far.
I was able to spend several hours this week to work on upcoming OpenWrt GUI. I use Dojo as a foundation. At this point I coded a skeleton, which works as a proof of concept. As soon as I finish putting in AJAX guts, I’ll switch to meaty functionality. Add some nice skin to it and we have our homunculus up and running.
Huh? AJAX? No, it’s not Ajax the detergent.
Finally I bit the bullet and decided to implement OpenWrt web-based user interface using Felix Fietkau’s code. Well, MIPS processors used by OpenWrt units are not race horses and GUI is slow to my taste. Yes, I know that stock firmware is not faster. "Slow" is absolute category for me.
How do we combat latencies and slow network speed? Exactly. We can apply the same for OpenWrt, where "slow network speed" is replaced with "slow processor on local network".
Today is the day of new releases: OpenWrt just released new White Russian RC3.
BTW, contrary to popular belief, it’s not just for Linksys WRT54G. You can run it too, if you have supported hardware. I run it on Buffalo WBR2-G54.
